Rail Pads

Semperit is the go-to partner for challenging problems that require effective solutions. Rail pads distribute the load, reduce vibration and noise, and protect the sleeper and the ballast. No matter what type of rail pads our customers need – extruded or moulded, rubber or plastic – we have the solution for all requirements.



Basis

Our basic rail pads are made of rubber or plastic and are 4.5 mm to 9 mm thick. Their main purpose is to prolong the service life of the rails and the rail fastening by distributing the load to reduce shocks and vibrations on the rails.

Examples of basic rail pads  from Semperit (all in accordance with UIC 865-5-0):

  • NABLA rail pad  S90, S45 (4.5 mm grooved)
  • Zw 686a
  • Zw 687a



Standard

Our standard rail pads are made of rubber and are 4.5 mm to 10 mm thick. In addition to the basic rail pad properties, the standard rubber rail pad is usually designed for specific load deflection characteristics, which are certified in specifications such as SNCF IG04045 and DB 918 235.

Examples of standard rail pads:

  • Zw 900
  • Zw 700
  • SR or SD pads

Extra Performance

Our extra performance rail pads  are basically our standard rail pads with customised characteristics. We offer customised rail pads, which includes calculations, testing and producing prototypes for test installation at the customer’s site. Our SemperSilentPads are an example of an extra performance rail pad. These noise-reducing rail pads are up to 3 decibels quieter than standard rail pads. They have been tested on Semperit’s in-house test rig and are certified by INFRABEL and other track operators.

Download

Info SemperSilent

Our Customers

We supply our products to a wide variety of customers in many different sectors. These include

  • National railways
  • Sleeper manufacturers
  • Screw manufacturers
  • System providers
  • Track construction companies

Certifications

  • ISO 14001 (Environment)
  • ISO 9001 (Quality)
  • ISO 45001 (Occupational Health and Safety)

CE Conformity

Our rail pads comply with international standards such as:

  • HPQ
  • Q1 supplier
  • AFER
  • MAV
  • ProRail

Research

Joint research/studies with:

  • Renowned universities
  • System providers
  • Research institutions

Standard Products

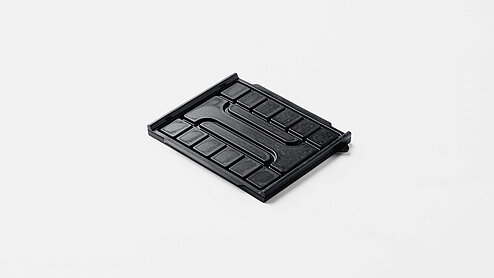

  • ZW 900

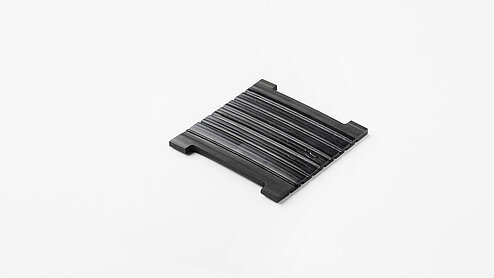

  • ZW 700

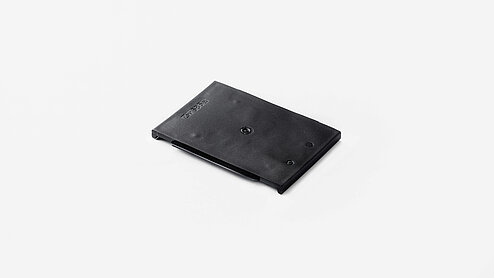

  • ZW 686a
  • ZW 687a



Continuous Product Development

With our development department for rubber and plastic molded articles, we develop solutions that take into account both the production engineering requirements of sleeper manufacturers and the specified requirements for the operation of these systems.
